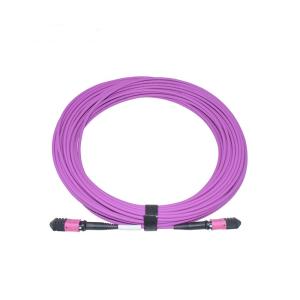

MPO To MPO Female Fiber Optic Patch Cable OM4 50 / 125um LSZH Multimode

Brand Name : Senko / US CONEC

Model Number : MPO MTP Fiber optic patch cord

Certification : ISO9001:2015

Place of Origin : SHENZHEN CHINA

MOQ : 1 piece

Price : US $10 - 20/ Piece

Payment Terms : L/C, T/T, Western Union

Supply Ability : 50K

Delivery Time : 7-8 working days

Packaging Details : 1 PCS /PE bag

Model No. : MPO to MPO Female 12 Fibers OM4

Ferrule Type : SM, SM low loss; MM, MM low loss

Brand : OEM

Warranty : 3 Years

Fiber brand : CORNING

Application : Data Center

Contact Now

SENKO original MPO to MPO Female 12 Fibers OM4 50/125um Type B LSZH Multimode Optical Cable 15m

Fiber Optic Patch Cable is also known as fiber optic jumper or fiber optic patch cord. Fiber Optic Patch Cable is important of optical network. They have same or different connectors which are installed on the end of fiber optic cable. Fiber optic patch cables are used in two major application areas: computer work station to outlet and patch panels or optical cross connect distribution center. The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.
The fiber optic patch cords are available in all connector styles
Various color cable available upon customers' request
Os1 (9/125um), OM1 (62.5/125um), OM2 (50/125um) and OM3 (50/125um)
are available
Any length is available upon request
For jacket, PVC (Riser) is normal and LSZH & Plenum are also available
For cable type, G655 & G657 are also available

Connector Performance Specifications:

Connector A
Connector Type
12 or 24 -Fiber MPO
Polish
PC(MM); APC(SM)
Housing Colour
MM (Beige), MM Elite (Aqua), SM (Green), SM Elite (Yellow)
Insertion Loss, Typical
≤ 0.10 dB
Insertion loss, max.
≤ 0.35 dB
Durability(500 Matings)
< 0.2dB
Connector B
Connector Type
2-Fiber LC Duplex Uniboot
Polish
UPC
Housing Colour
Aqua
Insertion Loss, Typical
≤ 0.10 dB
Insertion loss, max.
≤ 0.35 dB
Durability(1000 Matings)
< 0.2dB
Fiber Cable Performance Specifications:
Fiber Type
OS2, OM1, OM2, OM3, OM4 (corning Clear Curve)
Fiber Count
12,24 cores
Outer diameter
12cores:4.5±0.2mm ; 24cores:5.4±0.2mm
Outer jacket Colour
OS2(Yellow),OM2(Orange),OM3(Aqua),OM4(Purple)
Outer jacket material
LSZH,OFNP,OFNR
Tensile strength
500N
Operating Temperature
-20 ~ +60°C
Storage Temperature
-40 ~ +70°C

Product Show

MPO To MPO Female Fiber Optic Patch Cable OM4 50 / 125um LSZH MultimodeMPO To MPO Female Fiber Optic Patch Cable OM4 50 / 125um LSZH MultimodeMPO To MPO Female Fiber Optic Patch Cable OM4 50 / 125um LSZH MultimodeMPO To MPO Female Fiber Optic Patch Cable OM4 50 / 125um LSZH Multimode
