SM MTP MPO 40G / 100G Fiber Optical Patch Cord 72 / 144 Core 30M

Name: SM MTP MPO 40G 100G Fiber Optical Patch Cord 72 144 Core 30M
Brand: Senko / US CONEC
Price: 1 USD

China SM MTP MPO 40G / 100G Fiber Optical Patch Cord 72 / 144 Core 30M factory

Brand Name : Senko / US CONEC

Model Number : MPO MTP 72/144cores Fiber optic patch cord

Certification : ISO9001:2015 CE RoHS FCC

Place of Origin : China

MOQ : 1 piece

Price : US $10 - 20/ Piece

Payment Terms : L/C, T/T, Western Union

Supply Ability : 50K

Delivery Time : 7-8 working days

Packaging Details : 1 PCS /PE bag

Model No. : MPO to MPO Female 72F 144F

Fiber Type : G657A2

Insertion Loss : ≤0.35 dB

Return Loss : ≥50 dB

Application : Data Center

Contact Now

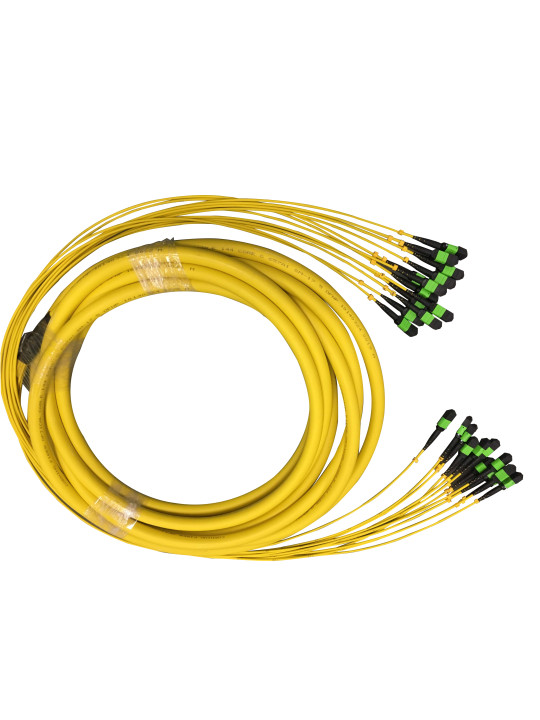

Data Center Cabling SM MTP MPO 40G/100G Fiber Optical Patch Cord 72 / 144 Core Cable 30M
Data Center Cabling SM MTP MPO 40G/100G Fiber Optical Patch Cord 72 / 144 core Cable
MPO / MTP multi-core optical bai cable jumper assembly products are composed of multi-core optical cables and corresponding 4/8/12/24/48 core high du density MPO / MTP. This product can provide zhi male or female MPO / MTP models, and can choose 4~48 core single-mode and multi-mode optical cables of various specifications.
Features:1. Low insertion loss, high return loss.
 2. MT based Multi-fiber Connector, 36-144 fiber connector terminations and assemblies.
 3. Economical solution for mass-termination of fiber.
 4. Designed for low loss and standard loss SM and MM applications.

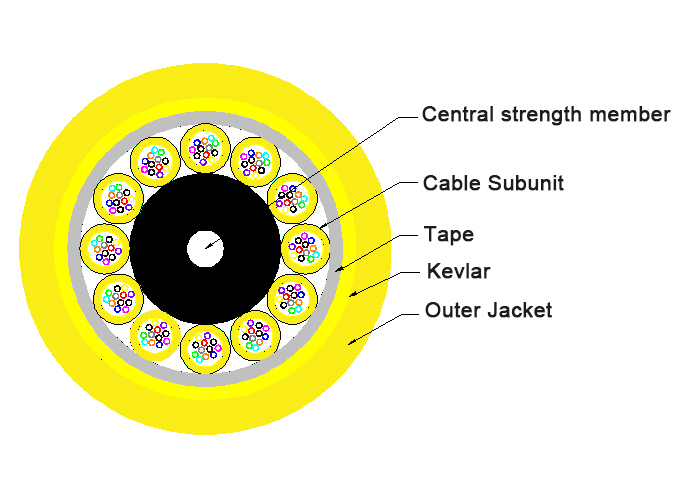

 5. Ruggedized round cable, oval cable and bare ribbon options available.
 6. Color coded housings available to differentiate fiber type, polish type and/or connector grade.
 7. Good in repeatability and exchangeability.

Application:◆Backbone installation
 ◆Data center cabling
 ◆Support 40G and 100G network
 ◆Telecommunication network
 ◆Industrial&Military
Connector Performance :
 	 			Model
 			SM
 			MM

 			Connector Fiber Count
 			8, 12, 24,72,144 core

 			Polish
 			PC, APC

 			Housing Color
 			Standard (green),
 			Elite (Yellow)
 			Standard(Beige)
 			Elite(Auqa)

 			Insertion Loss Standard type
 			less than 0.7dB
 			Less than 0.5dB

 			Insertion loss Elite type
 			Less than 0.35dB
 			Less than 0.3dB

 			Return Loss
 			PC >50dB, APC>60dB
 			>30dB

 			Durability (500 matings)
 			less than 0.2dB
 			less than 0.2dB

 			Test Eavelength
 			1310/1550nm
 			850/1300nm



Product Tags:

Fiber Optical Patch Cord 72 Core

Fiber Optical Patch Cord 144 Core

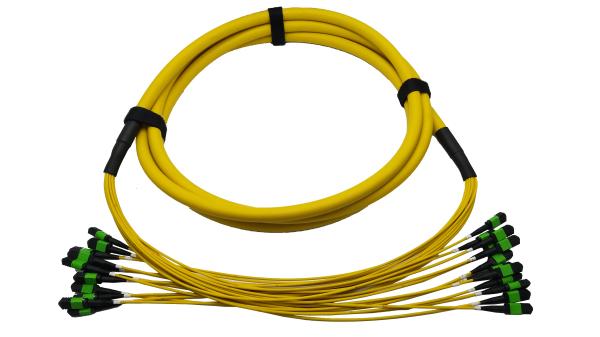

SM MTP MPO 40G / 100G Fiber Optical Patch Cord 72 / 144 Core 30M Images

Inquiry Cart 0

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	Shenzhen CY COM Product Co., Ltd
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Model	SM	MM
Connector Fiber Count	8, 12, 24,72,144 core
Polish	PC, APC
Housing Color	Standard (green), Elite (Yellow)	Standard(Beige) Elite(Auqa)
Insertion Loss Standard type	less than 0.7dB	Less than 0.5dB
Insertion loss Elite type	Less than 0.35dB	Less than 0.3dB
Return Loss	PC >50dB, APC>60dB	>30dB
Durability (500 matings)	less than 0.2dB	less than 0.2dB
Test Eavelength	1310/1550nm	850/1300nm
