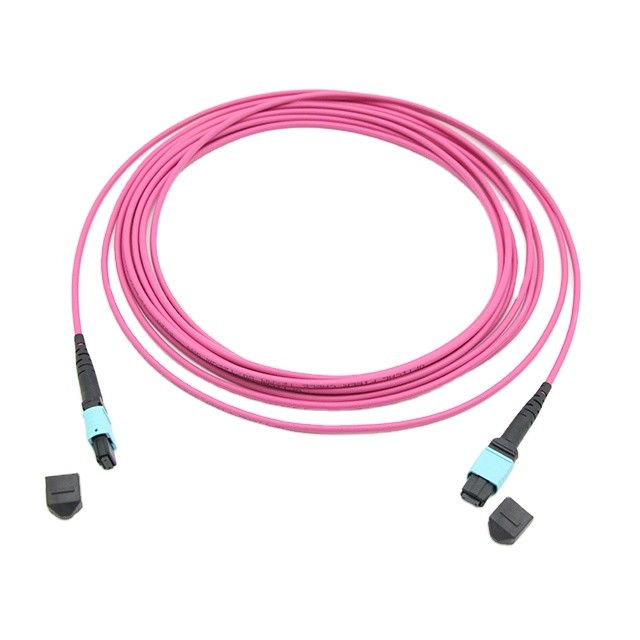

MTP 12 Core OM4 MM Fiber Optic Trunk Cable For Data Center Cabling

Name: MTP 12 Core OM4 MM Fiber Optic Trunk Cable For Data Center Cabling
Brand: Senko / US CONEC / Furukawa Connector
Price: 1 USD

China MTP 12 Core OM4 MM Fiber Optic Trunk Cable For Data Center Cabling factory

Brand Name : Senko / US CONEC / Furukawa Connector

Model Number : MTP-MTP OM4 12Cores 3m

Certification : ISO9001:2015

Place of Origin : Shenzhen

MOQ : 1 piece

Price : US $10 - 20/ Piece

Payment Terms : L/C, T/T, Western Union

Supply Ability : 50K

Delivery Time : 3-5 working days

Packaging Details : 1 PCS /PE bag

Multi-Mode Fiber : OM1,OM2,OM3,OM4,OM5

No. of Fiber : 8,12,24,48

Length : Customized

Connector Type : MTP Female

Application : Data Central

Contact Now

10G 40G 100G MTP Female 12 cores OM4 MM Trunk Patch Cord 100% 3D test MTP trunk cable for Data center cabling

MPO trunk cables connect MPO modules together as a permanent link. The trunk cables are available with 24F,48F,60F,72F ,96F,144F.Support speeds up to 10/40/100Gbps data center solutions. They are typically adopted to interconnect cassettes, panels or ruggedized MPO fan-outs, and to facilitate rapid deployment of high-density backbone cabling in data centers and other high fiber environments. Besides, MPO also provides much flexibility and convenience once you have to change the connector style in the patch panels. Instead of changing the connector on the cable trunk, just installing a new cassette with the new connector style on the cross-connect side of the patch panel.Specification

Specification

Spec items.	Single mode (APC 8-degree polished)	Multimode (PC Flat polish)
Insertion loss (MPO) (IEC 61300-3-34)	Standard MPO:≤0.75dB(max), ≤0.35dB(Typical) Elite MPO:≤0.35dB(max), ≤0.20dB(Typical)	Standard MPO:≤0.6dB(max), ≤0.35(Typical) Elite MPO:≤0.35dB(max) , ≤0.20dB(Typical)
Return loss(MPO)	≥60dB(8degree polishing)	≥25dB
Durability	<0.3dBtypical change, 200 matings
Interchangeability	≤0.2dB
Tensile strength	>70N
Operating Temperature	-40 to + 85°C

MTP 12 Core OM4 MM Fiber Optic Trunk Cable For Data Center Cabling
