Yellow Breakout Mpo - Sc Fiber Optic Patch Cord 8 Cores Telcordia Standard

Name: Yellow Breakout Mpo Sc Fiber Optic Patch Cord 8 Cores Telcordia Standard
Brand: Senko / US CONEC / Furukawa Connector
Price: 15 USD

China Yellow Breakout Mpo - Sc Fiber Optic Patch Cord 8 Cores Telcordia Standard factory

Brand Name : Senko / US CONEC / Furukawa Connector

Model Number : MPO-8SC-SM

Place of Origin : Shenzhen

MOQ : 1PCS

Price : 15 USD/PCS

Payment Terms : T/T

Supply Ability : 50K

Delivery Time : 5-10days

Packaging Details : PE Bag, BOX

Cores : 8

MPO spec items : SM UPC/Flat Polish

Certification : Telcordia GR-1435-CORE compliant

Test Wavelength : 1310nm, 850nm

Durability : <0.3dB typical change, 500 matings

Contact Now

Yellow Breakout Mpo - Sc Fiber Optic Patch Cord 8 Cores Telcordia Standard

MPO/MTP patch cord is a kind of high density cable assemblies which can be used in CO of FTTH. It save space and easy to maintain.

Features:

Low insertion loss, high return loss

MT based Multi-fiber Connector up to 12 fibers

High credibility and stability

Good in repeatability and exchangeability

Standard: Telcordia GR-1435-CORE compliant

Application:

Testing equipment

FTTX+LAN

Optical fiber CATV

Optical communication system

Telecommunication networks.

Availability:

Ribbon and bundle cable available;

Patch cord, pigtail cable assemblies available.

MT-MT ribbon patch cord is available.

MPO Loopback available

Specification:

MPO/MTP’s spec items.	SM(APC Polish); SM(UPC/Flat Polish)		MM(PC/Flat Polish)
Test Wavelength	1310nm		850nm
Insertion loss	Standard	Low loss	Standard	Low loss
	≤0.5dB	≤0.35dB	≤0.5dB	≤0.35dB
Return loss	UPC≥50dB;APC≥60dB		≥30dB
Durability	<0.3dB typical change, 500 matings
Interchangeability	≤0.2dB
Tensile strength	>70N

Other connector’s Spec is the same as we mentioned in patch cord’s html.

Yellow Breakout Mpo - Sc Fiber Optic Patch Cord 8 Cores Telcordia Standard

Product Tags:

fiber optic patch cord

fiber optic cassette

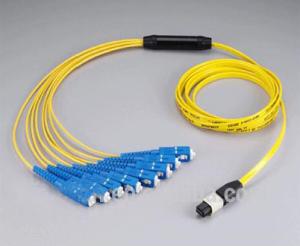

Yellow Breakout Mpo - Sc Fiber Optic Patch Cord 8 Cores Telcordia Standard Images
