Low Insertion Loss SC / APC SM DX Fiber Optic Cable Adapter With Flange

Name: Low Insertion Loss SC APC SM DX Fiber Optic Cable Adapter With Flange
Brand: CY COM
Price: 0.12 USD

China Low Insertion Loss SC / APC SM DX Fiber Optic Cable Adapter With Flange factory

Brand Name : CY COM

Model Number : SC/APC DX adapter

Certification : ISO9001:2008

Place of Origin : Shenzhen , China

MOQ : 100pcs

Price : USD0.12-0.24/PCS

Payment Terms : L/C,T/T,Western Union payments for offline orders.

Supply Ability : 4.5 MIllion PCS / Month

Delivery Time : in 5-10 days

Packaging Details : Plastic Box

Color : Green

Structure : Duplex

Material : RoHS

Contact Now

Low Insertion Loss SC / APC SM DX Fiber Optic Cable Adapter With Flange

Products introduction:

Fiber optic adapter is used for the connection and coupling between fiber active connectors. Choose proper type according to the splice of optical fiber active connector.Good agglomeration technic to ensure the best quality,high intensity and stability.

Features:

Low insertion loss;
Good repeatability and interchangeability;
Good environmental stability.

Specification:

rameter	Unit	LC, SC, FC, MU, ST, SC-ST, FC-ST, FC-SC,				MTRJ			E2000
		SM			MM	SM		MM	SM
		PC	UPC	APC	PC	PC	UPC	PC	PC	APC
Insertion Loss (Typical)	dB	≤0.3	≤0.2	≤0.3	≤0.2	≤0.3	≤0.2	≤0.2	≤0.3	≤0.3
Return Loss	dB	≥45	≥50	≥60	≥30	≥45	≥50	≥35	≥55	≥75
Exchangeability	dB	≤0.2				≤0.2			≤0.2
Repeatability	dB	≤0.2				≤0.2			≤0.2
Durability	Time	＞1000				＞1000			＞1000
Operating Temperature	℃	-40~75				-40~75			-40~75
Storage Temperature	℃	-45~85				-45~85			-45~85

Ordering Information:

For example:FC/UPC-SM-SX-Single "D" Type
Connector type: FC,SC,LC,ST,MPO,MTRJ,MU,E2000,D4,DIN,SMA
Ferrule end-face: PC,UPC,APC
Core type: Single-mode(SM:9/125μm), multimode(MM:50/125μm or 62.5/125μm)
Appearance: with ear type, no ear type;
Material: copper alloy, zinc alloy, plastic.

Low Insertion Loss SC / APC SM DX Fiber Optic Cable Adapter With Flange

Product Tags:

fiber optic coupler

optical fiber adapter

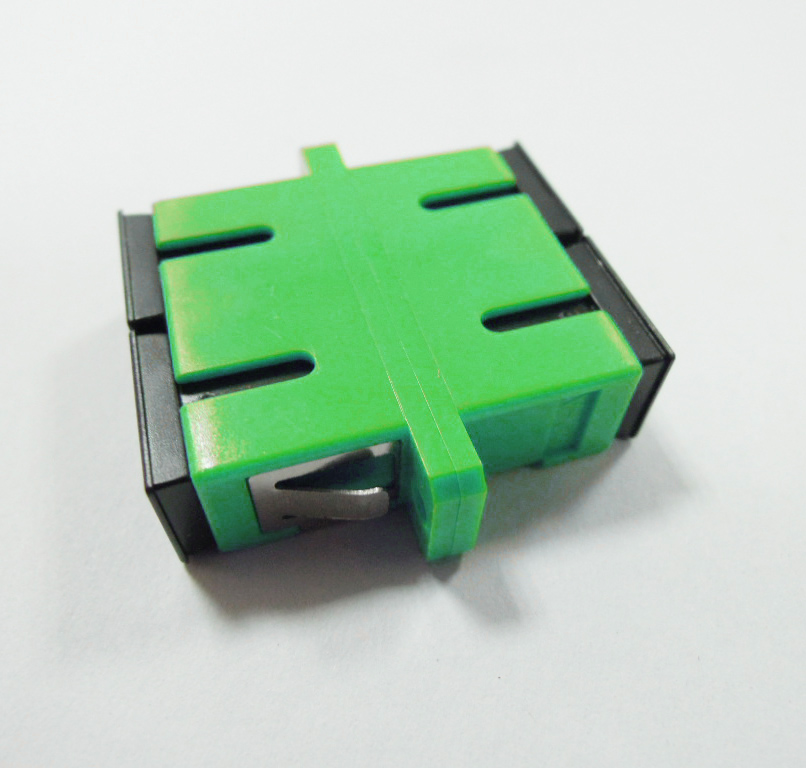

Low Insertion Loss SC / APC SM DX Fiber Optic Cable Adapter With Flange Images
