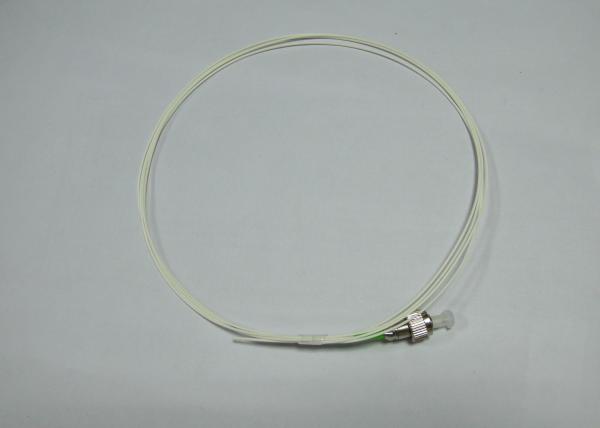

Low Insertion Loss and High Return Loss FC APC 0.9mm Fiber Optic Pigtail for Video Transmission , Data Transmission
Features:
Low insertion loss and high return loss
Good exchangeability
Support 10 Gigabit data transmitting rates
MM cables type
FC, LC, SC, MU, ST, MTRJ, E2000, MPO optional
Polishing: PC, UPC and APC
Meets IEC standard
Application:
1,FTTH , CATV, LAN, MAN, WAN, Test &Measuremen
2,Video transmission , Data transmission
3,Active Device Termination
4,Premise Installations
5,Telecommunication and Data processing Networks
6, Industrial, medical & military
7,Systems Integration for Long Haul, Metro and Access Network
Specifications (compliant with Telcordia and IEC standard):
Types: single mode, multi mode
Insertion Loss (dB): < 0.2 (UPC) , < 0.3 (APC)
Return Loss (dB): > 50 (SM/UPC) , > 60 (SM/APC), 35(MM/UPC)
Exchangeability: < 0.2 dB
Tensile Strength: < 0.2 dB ( 0 to15 Kgf )
Temp. Range: (- 40 to +80 degree centigrade)
Geometric Specification of Fiber Optic Patch Cords Finished End-face (fiber optic patch cord that passed Geometric test is of super performance) :
Types: PC Connector, APC Connector
Radius of Curvature: 10 to 25 mm, 5 to 15 mm
Apex Offset: <50 um, <100 um
Fiber Spherical Height: -90 nm , +50 nm
Angular Offset: 8degree �± 0.5 degree (APC)
| Item | Unit | FC,SC,LC | ST,MU | MT-RJ, MPO | E2000 |
| SM | MM | SM | MM | SM | MM | SM |
| PC | UPC | APC | PC | UPC | PC | PC | PC | UPC | PC | PC | UPC |
| Insertion loss(typical) | dB | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.2 | ≤0.2 | ≤0.3 | ≤0.3 |
| Return loss | dB | ≥45 | ≥50 | ≥60 | ≥30 | ≥45 | ≥50 | ≥30 | ≥45 | ≥50 | ≥35 | ≥55 | ≥75 |
| Operating wavelength | nm | 1310,1510 | 1310,1510 | 1310,1510 | 1310,1510 |
| Exchengeability | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Vibration | dB | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 |
| Operating temperature | °C | -40~75 | -40~75 | -40~75 | -40~75 |
| Storage temperature | °C | -45~85 | -45~85 | -45~85 | -45~85 |
| Cable Diameter | mm | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9 | φ3.0,φ2.0,φ0.9
|
Ordering Information:
FC/PC-SM- SX-3.0mm-1M
1. Connector type: FC, SC, LC, ST, MTRJ, MU, E2000, MPO, DIN, D4, SMA
2. Ferrule End-face: PC, UPC, APC
3. Core Type: Single-mode (SM: 9/125um), Multimode (MM: 50/125um or 62.5/125um)
4. Cable Quantity: DX means Duplex / SX means Simplex
5. Diameter: 3.0mm, 2.0mm, 0.9mm
6. Cable Length: 1, 2, 3 meter or customize
